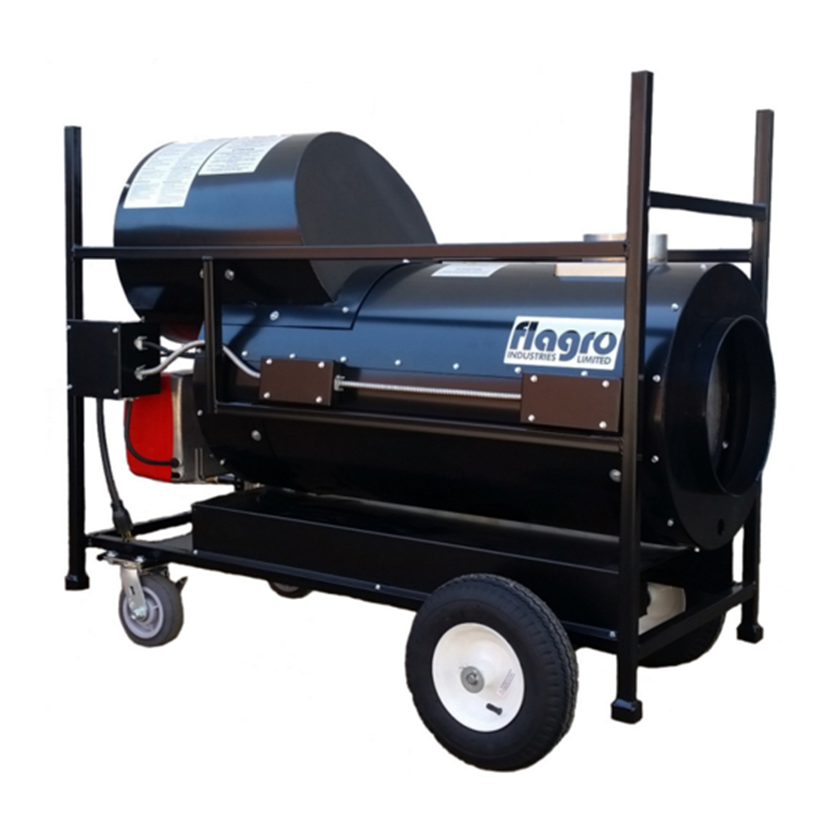

200,000 BTU Flagro FVN-P-200RC – Return Air

The Flagro FVN-P-200RC is a 200,000 BTU indirect-fired heater designed with a return air feature, making it highly efficient for heating large enclosed spaces by recirculating heated air. It’s well-suited for construction sites, event tents, temporary shelters, and industrial spaces where clean, fume-free heat is necessary.

Specifications

1. Heating Capacity:
   • BTU Output: 200,000 BTU/hr
2. Fuel and Power Requirements:
   • Fuel Type: Propane or natural gas
   • Fuel Consumption:
     • Propane: Approximately 8.8 lbs per hour
     • Natural Gas: Around 200 cubic feet per hour
   • Power Requirements: 120V for the blower and ignition systems
3. Airflow:
   • CFM (Cubic Feet per Minute): Approximately 1,800 CFM, enabling efficient air movement and even heat distribution
   • Return Air Capability: Equipped with return air functionality for enhanced heating efficiency by recirculating warm air from the space
4. Heating Area:
   • Effective for heating spaces up to 5,000–6,000 square feet, depending on insulation and environmental conditions
5. Physical Dimensions and Weight:
   • Dimensions: Approximately 55 inches (L) x 28 inches (W) x 40 inches (H)
   • Weight: Approximately 320 lbs (without fuel)
6. Ducting Capability:
   • Supports both supply and return ducting for flexible installation, typically using 12-inch ducting that can extend up to 25 feet on each side
