170,000 BTU – Frost Fighter IDH200QR – Return Air

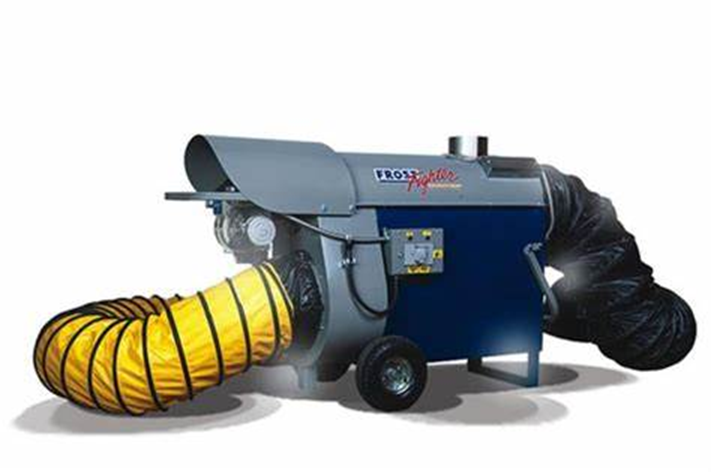

The Frost Fighter IDH200QR is a versatile, high-output indirect-fired heater with return air capability, making it effective for maintaining consistent temperatures in enclosed spaces by recirculating heated air. It’s suitable for construction sites, tents, temporary structures, and industrial applications where large areas require safe, fume-free heating.

Specifications

1. Heating Capacity:
   • BTU Output: 200,000 BTU/hr
2. Fuel and Power Requirements:
   • Fuel Type: Diesel or natural gas (depending on model)
   • Fuel Consumption:
     • Diesel: Approximately 1.6–1.8 gallons per hour at full capacity
   • Power Requirements: 120V or 240V for blower and ignition systems
3. Airflow:
   • CFM (Cubic Feet per Minute): Approximately 1,800–2,000 CFM, providing significant air movement for even heating
   • Return Air Capability: Equipped with return air functionality, which recirculates warm air to improve efficiency and heat distribution
4. Heating Area:
   • Can effectively heat spaces up to 6,000 square feet, depending on insulation and environmental conditions
5. Physical Dimensions and Weight:
   • Dimensions: Around 55 inches (L) x 27 inches (W) x 38 inches (H)
   • Weight: Approximately 300 lbs (dry weight)
6. Ducting Capability:
   • Supports both supply and return ducting, typically with a 12-inch duct for supply and return up to 25 feet, allowing flexibility for large or partitioned spaces

Applications

• Construction Heating: Ideal for warming large construction sites and temporary enclosures.
• Event and Tent Heating: Provides safe, fume-free heat for tents and event spaces.
• Industrial and Warehouse Heating: Capable of maintaining comfortable temperatures in warehouses and large industrial spaces.
• Temporary Structure Heating: Useful for emergency shelters, large workshops, and other temporary structures.

The Frost Fighter IDH200QR offers reliable, powerful heating with the added efficiency of return air capability, making it an efficient choice for large, enclosed spaces that need consistent and even heating.
