A 200,000 BTU heat exchanger is well-suited for substantial heating requirements in spaces like large construction sites, warehouses, or industrial facilities. Among the available options, the Dryair HEFA 200 Fan Coil stands out for its efficiency and robust performance.

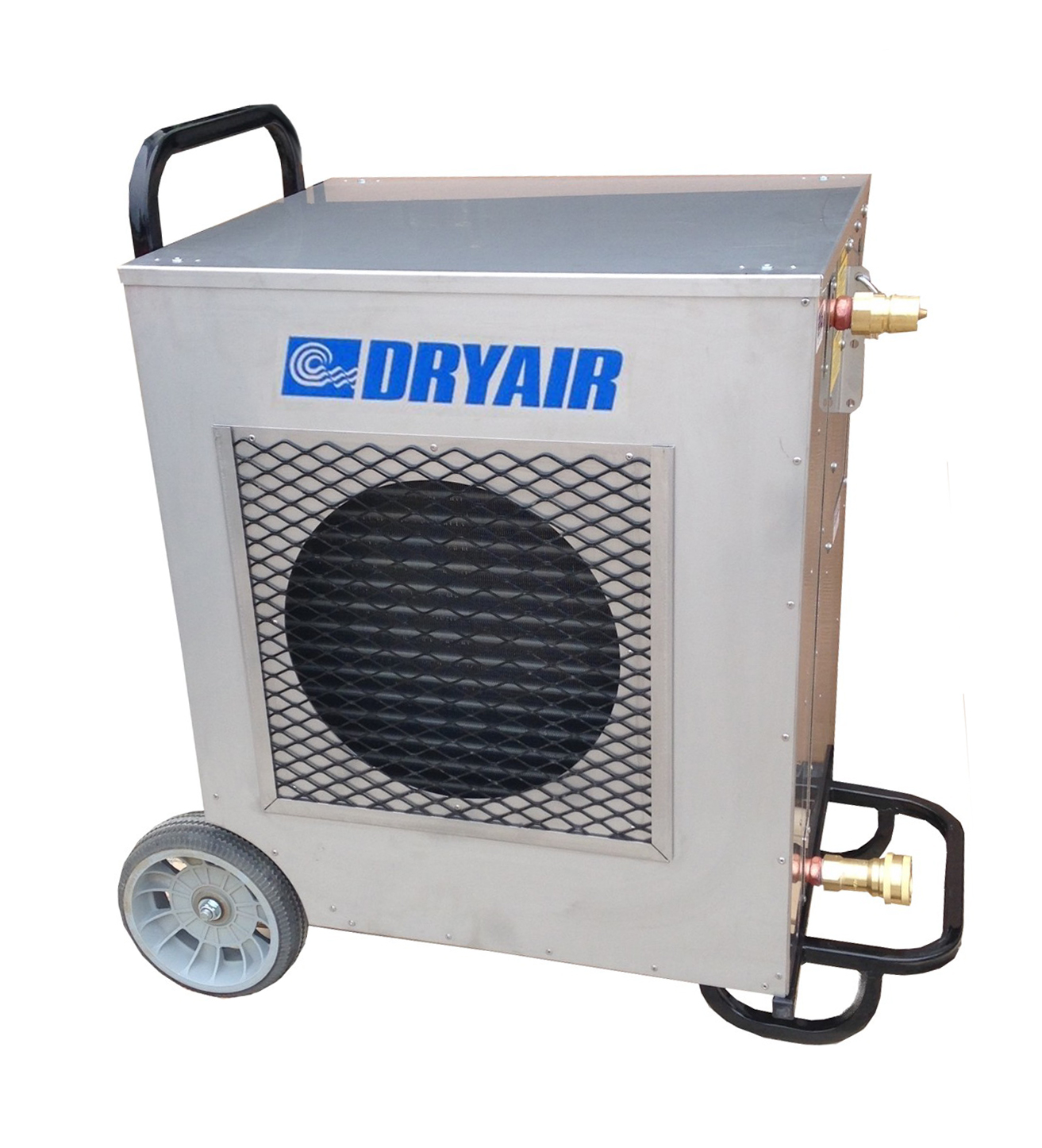

Dryair HEFA 200 Fan Coil
- BTU Output: 201,364 BTU/h, based on a 200°F (93°C) supply fluid and 32°F (0°C) ambient air, with 2,300 CFM airflow and 15 GPM fluid flow.
- Blower: G Series double inlet, delivering 2,300 CFM.
- Motor: 1 HP, 3-speed.
- Power Requirements: 120V, single phase, 60 Hz, drawing 12.7 amps.
- Controls: Thermostatic temperature control.
- Weight: Approximately 210 lbs (95 kg).
- Dimensions: 50″ L x 32″ W x 39″ H.
- Fluid Lines: 1″ I.D. with 1″ hydraulic-style quick couplers.
This unit is designed for portability and ease of use, making it ideal for temporary heating applications where rapid deployment is essential.
Thermostatically Controlled.
