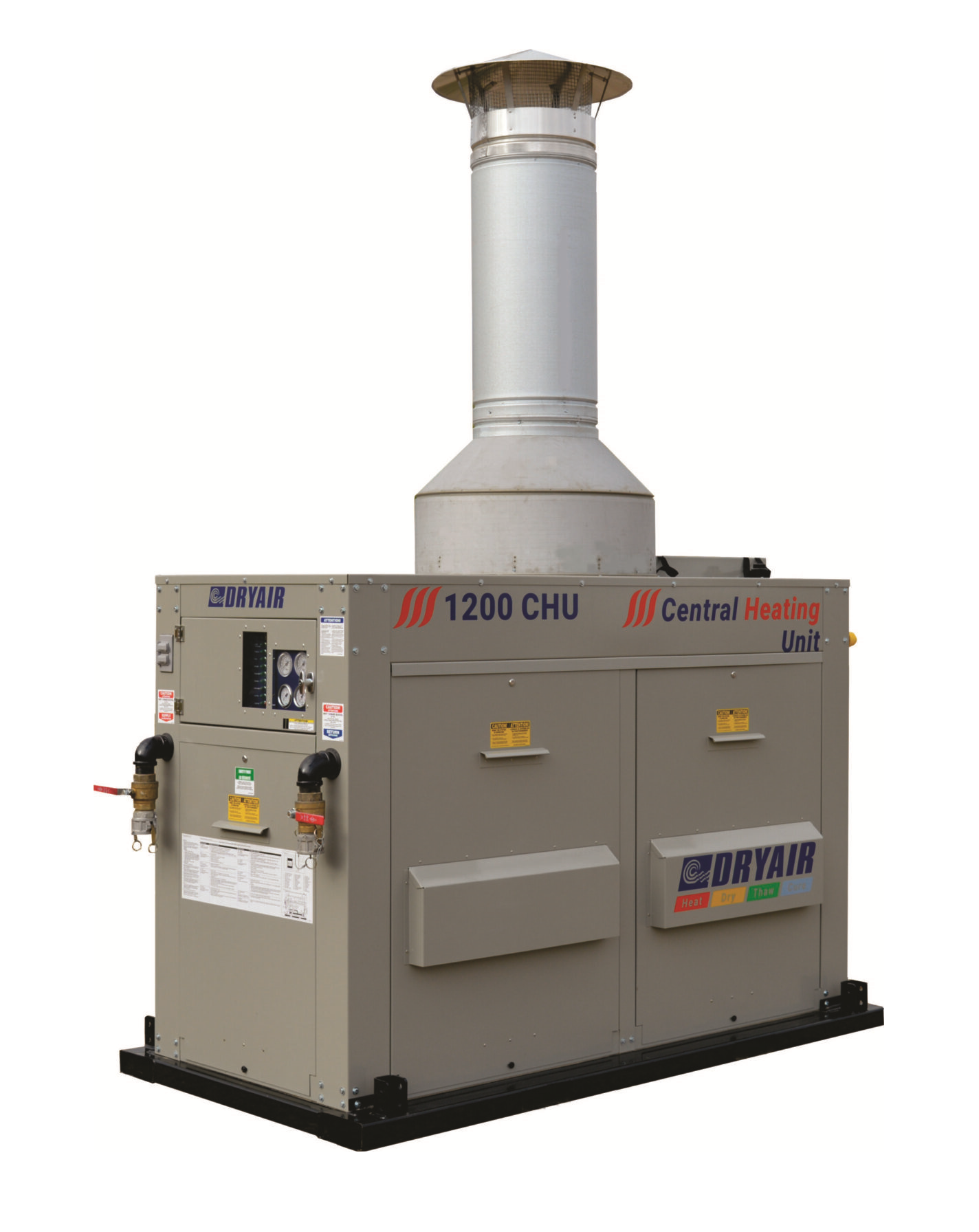

The DryAir 1200 CHU (Central Heating Unit) is a high-performance, portable heating solution designed for industrial applications such as construction site heating, concrete curing, and thawing. Built with efficiency and durability in mind, the 1200 CHU delivers 1.2 million BTU/hr of safe, indirect heat using hydronic technology. Its fuel versatility and heavy-duty construction make it a reliable choice for maintaining optimal temperatures in extreme weather conditions.
Features
- High Heat Output: The 1200 CHU provides up to 1.2 million BTU/hr of hydronic heating power, efficiently delivering heat to large spaces or targeted areas, ideal for use in construction, thawing, and curing applications.
- Versatile Fuel Options: The unit operates on natural gas, propane, or diesel, allowing flexibility to match job site fuel availability.
- Hydronic Heating System: Unlike traditional air heaters, the DryAir system uses a fluid-based heat exchanger that prevents combustion contaminants from entering the workspace, ensuring safe, clean heat.
- Temperature Control: Equipped with advanced temperature controls and monitoring systems, the 1200 CHU ensures precise temperature management, maintaining optimal heat for sensitive applications such as concrete curing.
- Rugged Construction: Built with a robust steel frame and heavy-duty components, the unit is designed for extreme durability in harsh environments, including cold weather and remote job sites.
- Easy Mobility: The unit is designed with integrated forklift pockets and lifting lugs for easy transportation and positioning on job sites.
- Modular System: The 1200 CHU is part of a modular system that allows integration with a variety of DryAir accessories, expanding its functionality for more specialized heating needs.
Specifications
- Heat Output: 1.2 million BTU/hr
- Fuel Types: Natural gas, or Propane
- Electrical Requirements: 125/230 V Single Phase, 60 Hz, 30 A
- Operating Weight: 1,815 lbs
- Dimensions (L x W x H): 98 x 44 x 52 inches (248.9 x 111.8 x 132.1 cm)
- Heat Transfer Fluid: Propylene glycol/water mix
Applications
- Construction Site Heating: Provides reliable heat to maintain productivity and safety on job sites in cold weather conditions, especially for drying and curing operations.
- Concrete Curing and Thawing: Ideal for accelerating concrete curing times and thawing frozen ground, ensuring timely project completion even in winter conditions.
- Oil and Gas Industry: Designed to supply heat for drilling rigs, pipelines, and oil field infrastructure in remote or cold weather environments.
- Temporary Heating: Suitable for providing heat to large outdoor events, emergency shelters, or temporary structures.
- Industrial Facilities: Perfect for heating large industrial spaces or factories, helping to maintain operational efficiency in cold climates.
| Manufacturer specifications |
|---|
Download Manufacturer Specifications
