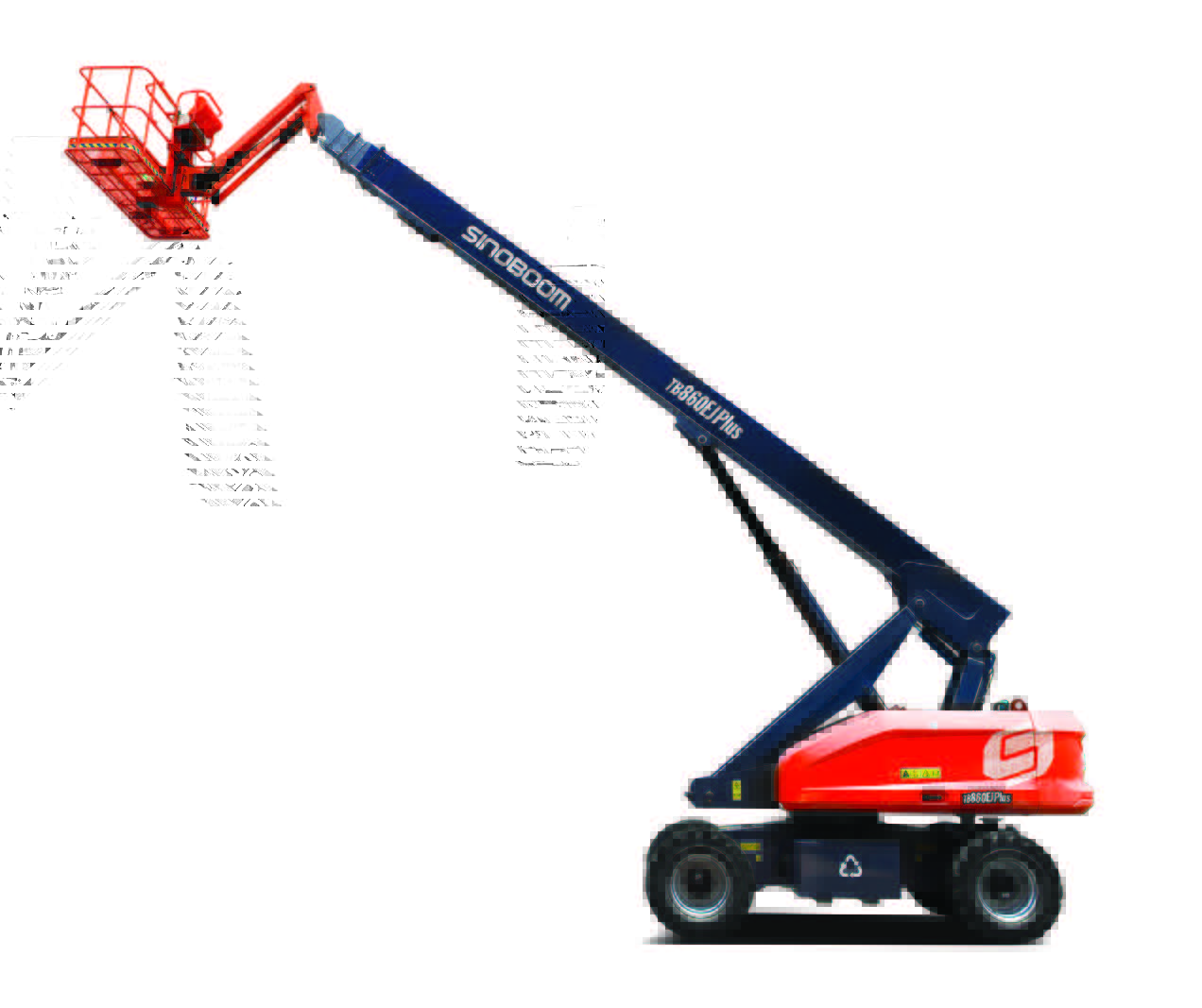

The Sinoboom TB860J Plus is a high-capacity telescopic boom lift designed to provide exceptional reach, lifting capability, and jobsite productivity. Featuring a working height of over 92 feet, 4-wheel drive, oscillating axle, and dual platform capacity ratings, the TB860J Plus is ideal for commercial construction, industrial maintenance, steel erection, and infrastructure projects. Its rugged design, impressive horizontal outreach, and smooth proportional controls allow operators to safely access hard-to-reach work areas while maximizing efficiency on demanding jobsites.
Features
Exceptional Working Height: Provides a maximum working height of 92 ft 3 in, allowing access to elevated work areas with ease.
Outstanding Horizontal Outreach: Offers up to 65 ft 7 in of horizontal reach for accessing difficult-to-reach locations.
Dual Platform Capacity: Supports up to 1,000 lbs in restricted mode and 661 lbs in unrestricted mode for increased versatility.
4-Wheel Drive Performance: Equipped with 4WD and an oscillating axle for superior traction and maneuverability on rough terrain.
Continuous 360° Rotation: Allows operators to position the platform efficiently without unnecessary machine repositioning.
Powerful Diesel Engine: Powered by a reliable diesel engine for dependable performance and fuel efficiency.
Operator-Friendly Controls: Smooth proportional controls and a spacious platform enhance operator comfort and precision.
Heavy-Duty Construction: Built to withstand demanding commercial and industrial jobsite environments.
Specifications
| Specification | Details |
| Max Working Height | 92′ 3″ (28.1m) |
| Max Platform Height | 86′ 3″ (26.3m) |
| Max Horizontal Extension (Restricted/Unrestricted) | 65′ 7″ (20.0m) / 58′ 9″ (17.9m) |
| Platform Capacity (Restricted/Unrestricted) | 1,000 lbs (454kg) / 661 lbs (300kg) |
| Platform Dimensions (L × W × H) | 8′ x 3′ x 3′ 7″ (2.44m x 0.91m x 1.1m) |
| Fuel Type | Diesel |
| Fuel Capacity | 160 Litres (42.3 US Gallon) |
| Machine Weight | 37,479 lbs (17,000kg) |
| Drive System | 4-Wheel Drive |
| Gradeability (4WD) | 45% |
| Drive Speed – Stowed | 3 mph (4.8km/h) |
| Drive Speed – Raised | 0.68 mph (1.1km/h) |
| Turntable Rotation | 360° Continuous |
| Platform Rotation | 160° |
| Platform Occupancy | 3 Persons (Restricted) / 2 Persons (Unrestricted) |
Applications
Commercial Construction: Ideal for structural steel work, exterior finishing, and elevated construction tasks.
Industrial Maintenance: Perfect for plant shutdowns, facility maintenance, and equipment installation.
Mechanical & Electrical Contractors: Provides safe access for HVAC, electrical, and mechanical system installations.
Infrastructure Projects: Suitable for bridge work, utility installations, and large-scale public works projects.
General Access Work: Excellent for any project requiring exceptional working height and horizontal reach on rough terrain.
| Manufacturer specifications |
|---|
Download Manufacturer Specifications
