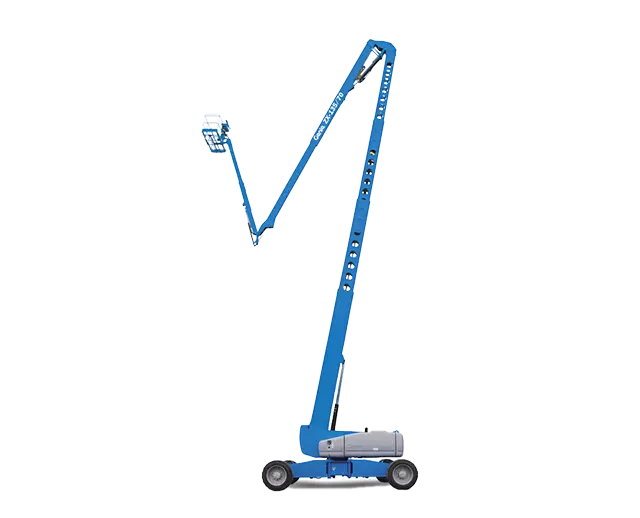

The Genie Z-135/70 is a high-reaching articulating boom lift designed for maximum versatility and reach in challenging work environments. It is ideal for construction, maintenance, and industrial tasks that require extensive reach and precise positioning.
Features
- Articulating Boom: Provides exceptional up-and-over access with a maximum working height of 141 ft.
- Telescoping Jib: Offers additional reach and precise positioning capabilities.
- Proportional Controls: Ensure smooth and precise lift and drive operations.
- Rough Terrain Capabilities: Equipped with four-wheel drive and active oscillating axles for superior traction on uneven surfaces.
- 360-Degree Continuous Rotation: Enhances maneuverability and positioning flexibility.
Specifications
- Max Working Height: 141 ft
- Platform Height: 135 ft

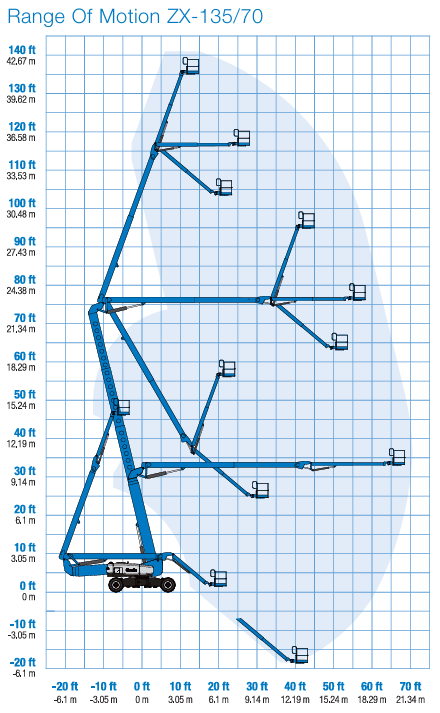

- Horizontal Reach – Riser Retracted: 69 ft 9 in
- Horizontal Reach – Riser Extended: 59 ft 2 in
- Up-and-Over Clearance – Riser Retracted: 32 ft 6 in
- Up-and-Over Clearance – Riser Extended: 75 ft 6 in
- Lift Capacity: 600 lbs
- Fuel Type: Diesel
- Fuel Capacity: 151.4 Litres
- Machine Width: 12 ft 11 in
- Machine Length (Stowed): 42 ft 5 in
- Weight: 46,500 lbs
| Manufacturer specifications |
|---|
Download Manufacturer Specifications
