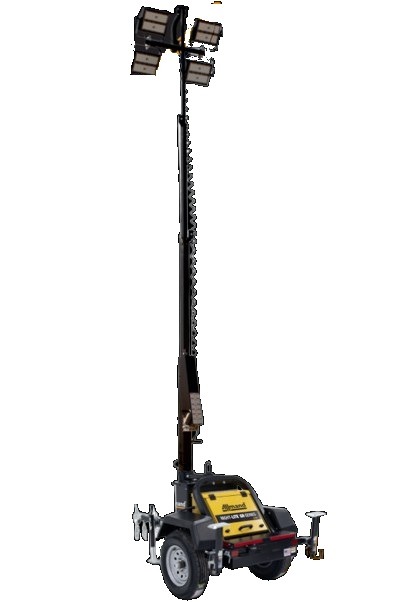

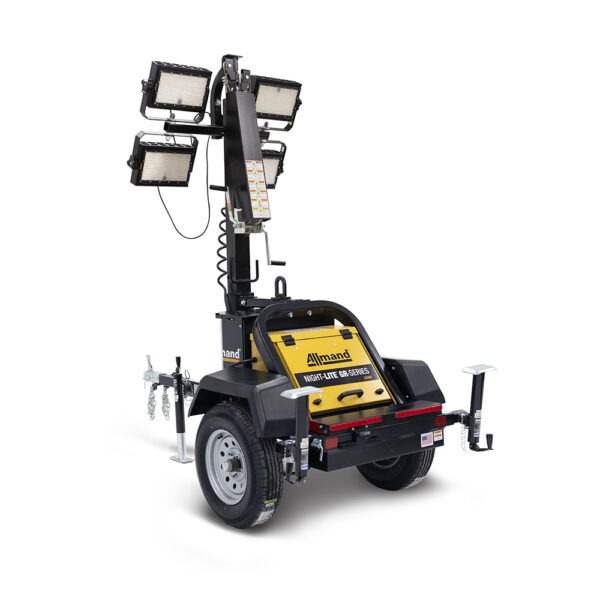

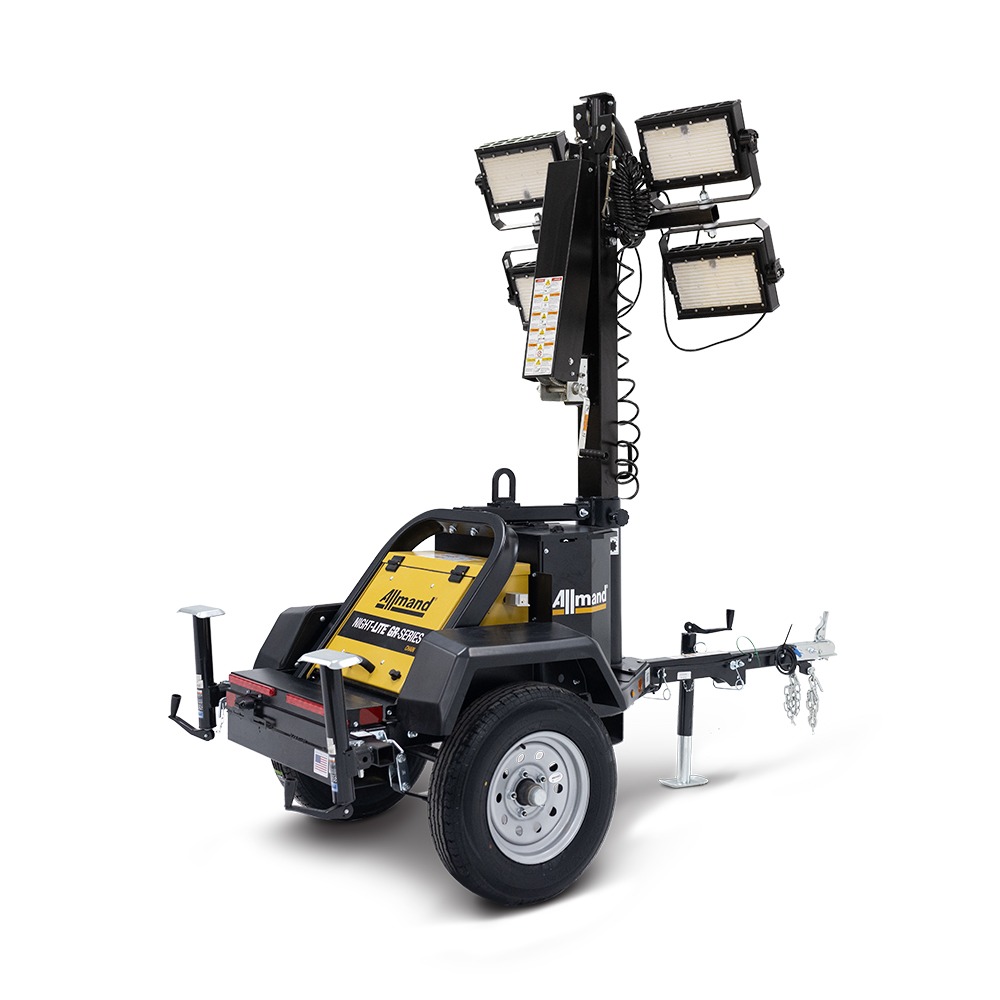

Simpler, lighter, and lower cost, the Night-Lite™ GR-Series Chain towable light towers are the most easily deployed and easy-to-maneuver units in its class. Flexibility in power is inherent with this unit allowing for any power source with 15 amp or 20 amp connections to illuminate a jobsite. To increase the impact of the Night-Lite™ GR-Series Chain light tower, the ability to daisy chain units is a built-in feature. Four LED light fixtures with 175,368 total lumens lighting will provide plenty of brightness for any space. This unit saves money immediately with the size capability to ship 20 units on a truck.
| Specification |
Details |
| LED Wattage (per lamp) |
250 |
| LED Lumens (per lamp) |
43,842 |

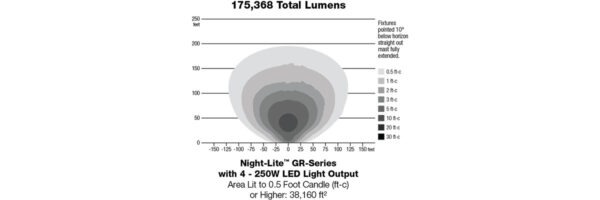

| LED Lumens (total) |
175,368 – 4 Lights |
| Light Type – 250W LED (Standard) |
SMD Style LED, 5000° K Color Temperature |
| Transport Height (Mast Lowered) |
99 in (2,502 mm) |
| Operating Height (Mast Raised) |
276 in (7,010 mm) |
| Transport Width |
48 in (1,245 mm) |
| Operating Width (Outriggers Deployed) |
94 in (2,388 mm) |
| Transport Length |
77 in (1,956 mm) |
| Operating Tower Wind Speed Rating |
50 MPH (80 km/h) |
| Trailer Weight |
750 lbs (340 kg) |
| Trailer GVWR |
1,200 lbs (544 kg) |
| Inlet (No Chain) |
120V / 15A (NEMA 5-15R) |
| Inlet (Chain) |
120V / 20A (NEMA L5-20P) |
| Outlet |
120V / 20A (NEMA 5-20R) GFCI Duplex |
Download Manufacturer Specifications
