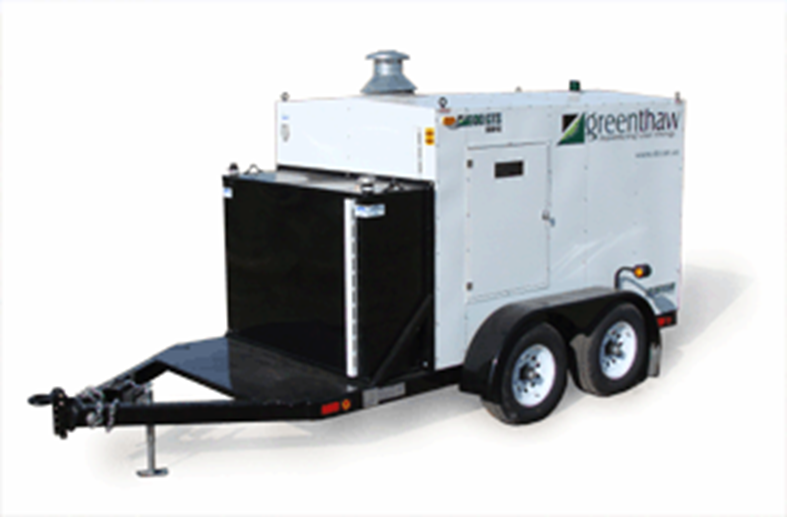

The DryAir Greenthaw 600 GTS is a high-capacity hydronic heating unit, typically used for large-scale thawing, concrete curing, and temporary heating applications in construction and industrial settings. This model is designed for efficient fuel use and robust heating capabilities.
Specifications
- Heating Capacity:
- BTU Output: 600,000 BTU/hr
- Fuel and Power Requirements:
- Fuel Type: Diesel
- Fuel Tank Capacity: Approximately 130 gallons (492 liters)
- Fuel Consumption: 3.0–3.5 gallons per hour (depending on load)
- Full Load Run Time: Approximately 35–43 hours on a full tank
- Heating Area:
- Ground Thawing: Up to 15,000 sq. ft. at 12-inch depth
- Concrete Curing: Up to 12,000 sq. ft.
- Temporary Heating: Effective for heating large enclosures or temporary structures
- Hose Length and Flow:
- Hose Length: Comes with up to 3,000 feet of glycol hose, divided across multiple circuits
- Fluid Type: Glycol-water mixture for freeze protection
- Flow Rate: Adjustable, typically ranging from 6–8 GPM
- Physical Dimensions and Weight:
- Dimensions: Approx. 200 inches (L) x 90 inches (W) x 90 inches (H)
- Dry Weight: Around 5,800 lbs (2,631 kg)
Applications
- Ground Thawing: Effective for deep and large-scale thawing for excavations and site preparation in cold weather.
- Concrete Curing: Provides consistent, controlled heat to large areas, ensuring concrete sets correctly even in low temperatures.
- Temporary Heating: Suitable for large enclosures like construction tents, temporary warehouses, and other cold-weather job sites.
The DryAir Greenthaw 600 GTS is designed for high-output heating with the capability to handle demanding environments, making it ideal for winter construction and other cold-weather industrial needs.
* Optional on board Generator at extra cost: Suggested Kubota 7000 Watt.
