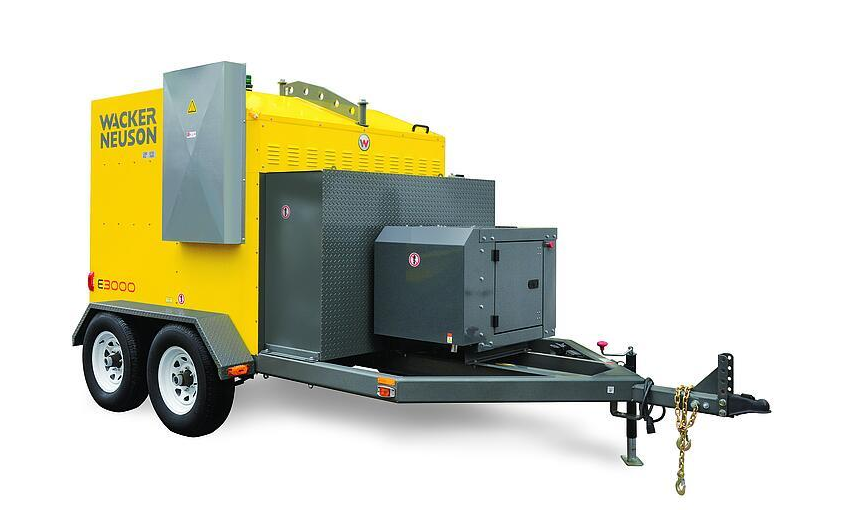

The Wacker Neuson E3000 is a high-capacity hydronic ground heater, primarily used in construction for tasks such as ground thawing, concrete curing, and temporary heating. Here are the detailed specifications and operational guidelines for this model:
Specifications
- Heating Capacity:
- BTU Output: 252,000 BTU/hr
- Max Operating Temperature: 180°F (82°C)
- Fuel and Power Requirements:
- Fuel Type: Diesel
- Fuel Tank Capacity: ~231 liters (61 gallons)
- Fuel Consumption: Approximately 1.05–1.25 gallons per hour, depending on load
- Full Load Run Time: Up to 120 hours on a full tank
- Heating Area:
- Ground Thawing: Up to 6,800 sq. ft. at 12-inch depth
- Concrete Curing: Up to 6,000 sq. ft.
- Hose Length and Flow:
- Hose Length: 3,000 feet (divided among four circuits)
- Fluid Type: Glycol-water mix for freeze protection
- Flow Rate: 4–6 gallons per minute (GPM)
- Physical Dimensions and Weight:
- Dimensions: 184 inches (L) x 85 inches (W) x 85 inches (H)
- Dry Weight: Approximately 4,200 lbs (1,905 kg)
Operation Guide
1. Setup and Safety
- Location: Place the unit on a stable, level surface with adequate ventilation for diesel exhaust.
- Fueling: Fill the diesel tank with fuel (check regularly to avoid interruptions).
- Hose Setup: Lay out the glycol-filled hoses over the designated area for heating or thawing. Secure hoses in place to ensure even coverage.
2. Starting the Unit
- Preheat: Ensure the diesel engine preheats if operating in extremely cold conditions.
- Prime Pump: Prime the glycol pump to prevent airlock, allowing proper circulation of heated fluid through the hoses.
- Power On: Turn on the control panel, and set desired operating temperature and flow settings.
3. Monitoring and Adjusting
- Temperature Control: Monitor the temperature settings on the control panel to maintain consistent heat output.
- Fluid Flow: Verify the glycol mix is flowing through all hoses without obstruction.
- Fuel Level: Regularly check and refuel as necessary to maintain the heater’s operation over long periods.
4. Shutting Down the Unit
- Cool Down: Let the unit cool down for several minutes to prevent wear on components.
- Drain Hoses: Drain the glycol from the hoses if the unit is being stored to avoid freezing.
- Storage: Store the hoses and unit in a dry location to protect them from the elements.
Applications
- Ground Thawing: The E3000 provides deep ground thawing, ideal for excavation or laying foundations in cold conditions.
- Concrete Curing: Ensures consistent heat across a wide area, allowing concrete to cure properly in cold weather.
- Temporary Heating: Provides substantial warmth to large enclosures like tents, warehouses, and construction sites.
The Wacker Neuson E3000 is a robust heating solution, optimized for reliability in demanding cold-weather applications. Always follow manufacturer guidelines for safe operation and regular maintenance to ensure peak performance.
* Optional on board Generator at extra cost: Suggested Kubota 7000 Watt.
