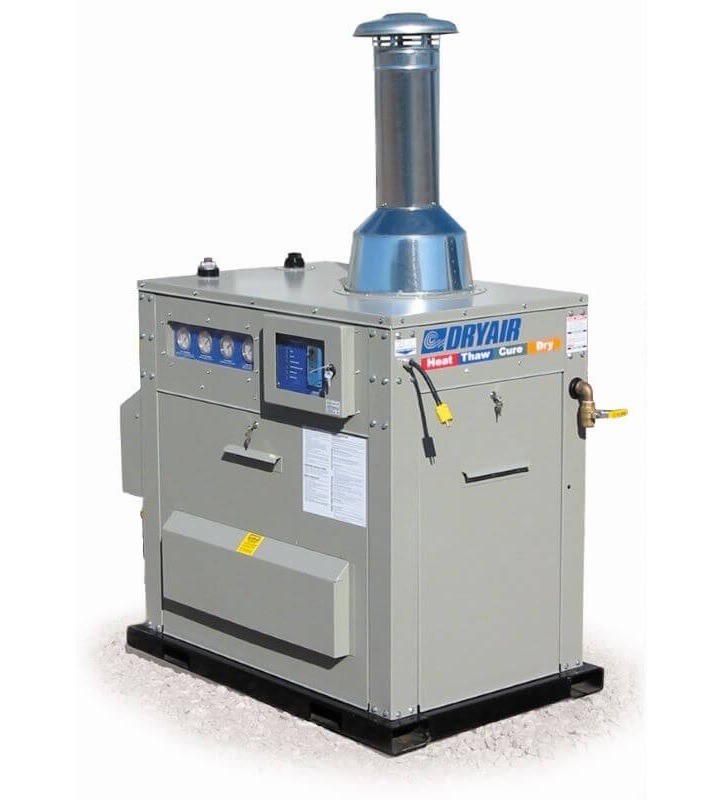

Central Heating Module – Model 2000-0250
Features:
• Propane or natural gas fuel source.
• Compact and portable design for easy positioning on the work site.
• All system operation is controlled and monitored from the heat module control panel
• Temperature control and fuel usage is automatic.
• 8-light system operation feature for easy system troubleshooting.
• Fluid circulation system is low pressure and atmospherically vented. There is no chance of an explosion or line burst due to pressure build-up. No special boiler certification is required to perate the system.
• Quick-connect hose couplers, “no-drain” fluid lines and a “rapid air elimination” feature ensures quick setup-and-go operation.
| Category | Specification |
|---|---|
| Type | Electric spark ignition |
| Temperature Range | 120°F to 200°F (49°C to 93°C) |
| Fuel Specs | |
| Natural Gas Fired | |
| Input Capacity | 248,000 BTU/H |
| Output Capacity | 199,000 BTU/H |
| Gas Pressure Range | 5”–14” W.C. |
| Manifold Gas Pressure | 4” W.C. |
| Consumption – Max. | 248 CU.FT/H (7 CU.M/H) |
| Propane Fired | |
| Input Capacity | 248,000 BTU/H |
| Output Capacity | 199,000 BTU/H |
| Gas Pressure | 11” W.C. |
| Manifold Gas Pressure | 10”–11” W.C. |
| Consumption – Max. | 2.71 US GAL/H (10.3 L/H) |
| Controls & Monitoring | Full gauge panel monitoring of circulation fluid temperatures & pressures, fuel pressures; 8-light system operation feature for easy troubleshooting |
| Weight (Basic) | 820 LBS (372 KG) |
| Electrical | 115 V, single phase, 60 Hz, 15 A |
| Module Fluid Circulation System | |
| Basic Features | Atmospherically vented low-pressure system, adjustable fluid temperature control, auto temperature bypass for heat exchanger protection |
| Heat Transfer Fluid (HTF) | Non-toxic propylene glycol / water mixture, freeze protected |
| Lines & Couplers | 1” fluid circulation hose, 1” quick-couplers |
| Circulation Pump | 3/4 HP, 30 GPM (136 LPM) @ 30 PSI |
| Note | No BTU deration for high altitude operation |
| Manufacturer specifications |
|---|
