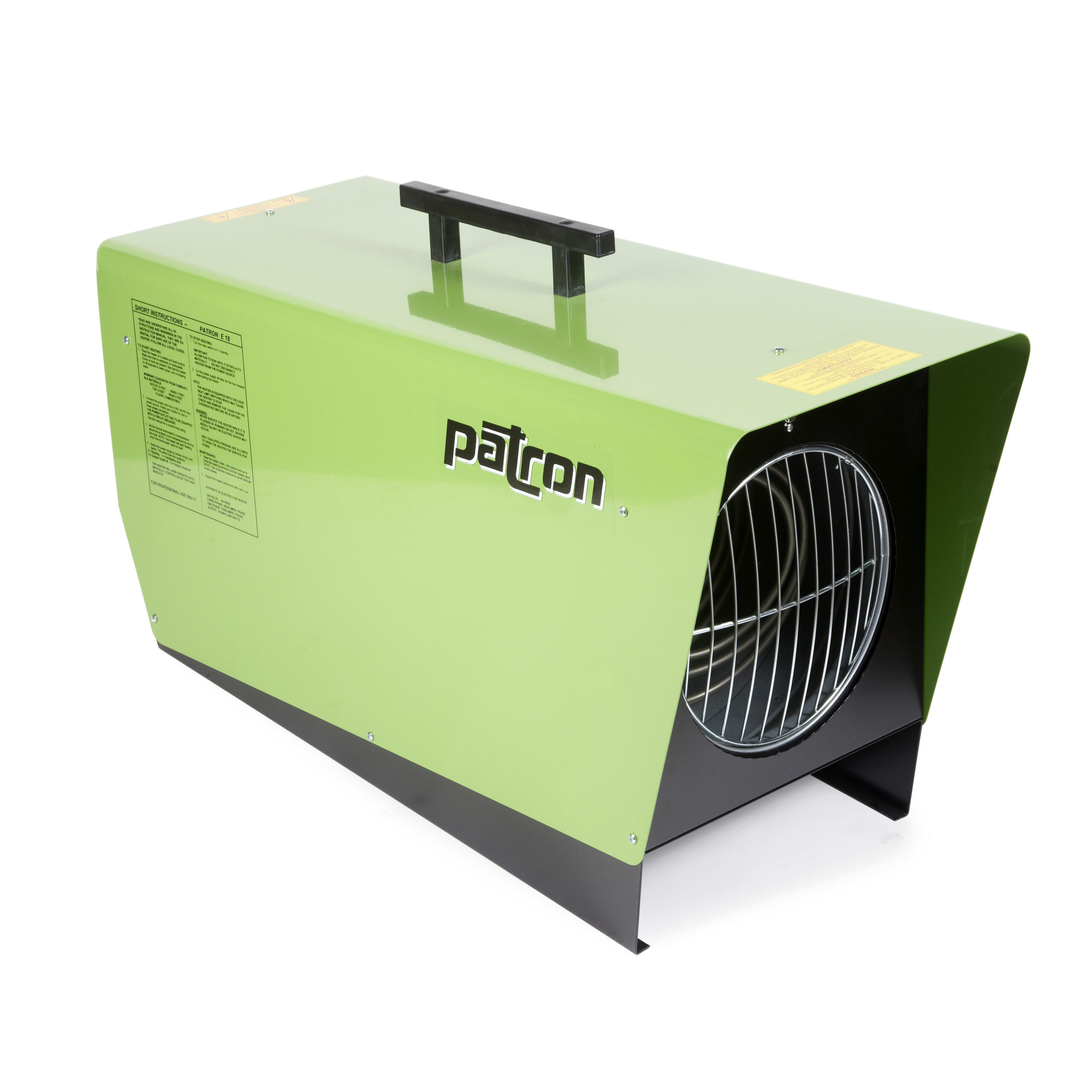

The Patron 18E-3: A versatile and powerful 3-phase electric heater, ideal for extensive heating needs. It can operate with an 18,000-watt output on 240 volts, delivering a robust 65,000 BTU/hr. Equipped with multiple settings, including fan only, 13kW, and 18kW, this heater excels in versatility.
Key Features:
- Variable Heat Settings: Adaptable with 13kW and 18kW settings plus a fan-only mode.
- High Airflow: Circulates air with a 590 CFM fan, ideal for large spaces.
- Temperature Control: Includes an ambient thermostat adjustable from 32°F to 100°F.
- Safety Features: Overheat protection at 104°F and a durable steel casing ensure safe operation.
Specifications:
| Specification | Value |
|---|---|
| BTU/Hr | 65,000 |
| Watts | 18,000 |
| Volts / Amps | 240V / 47A |
| Phase | 3PH |
| Airflow | 590 CFM |
| Dimensions | 32″ x 14″ x 20″ |
| Weight | 62 lbs |
| Noise Level | 58 dB at 1 meter |
Ideal Applications:
- Large Area Heating: Suits industrial spaces, warehouses, and large event areas.
- Drying and Ventilating: Capable of high-performance drying and ventilation.
Please contact a qualified electrician for wire, breaker sizing, and installation.
| Manufacturer specifications |
|---|
Download Manufacturer Specifications
