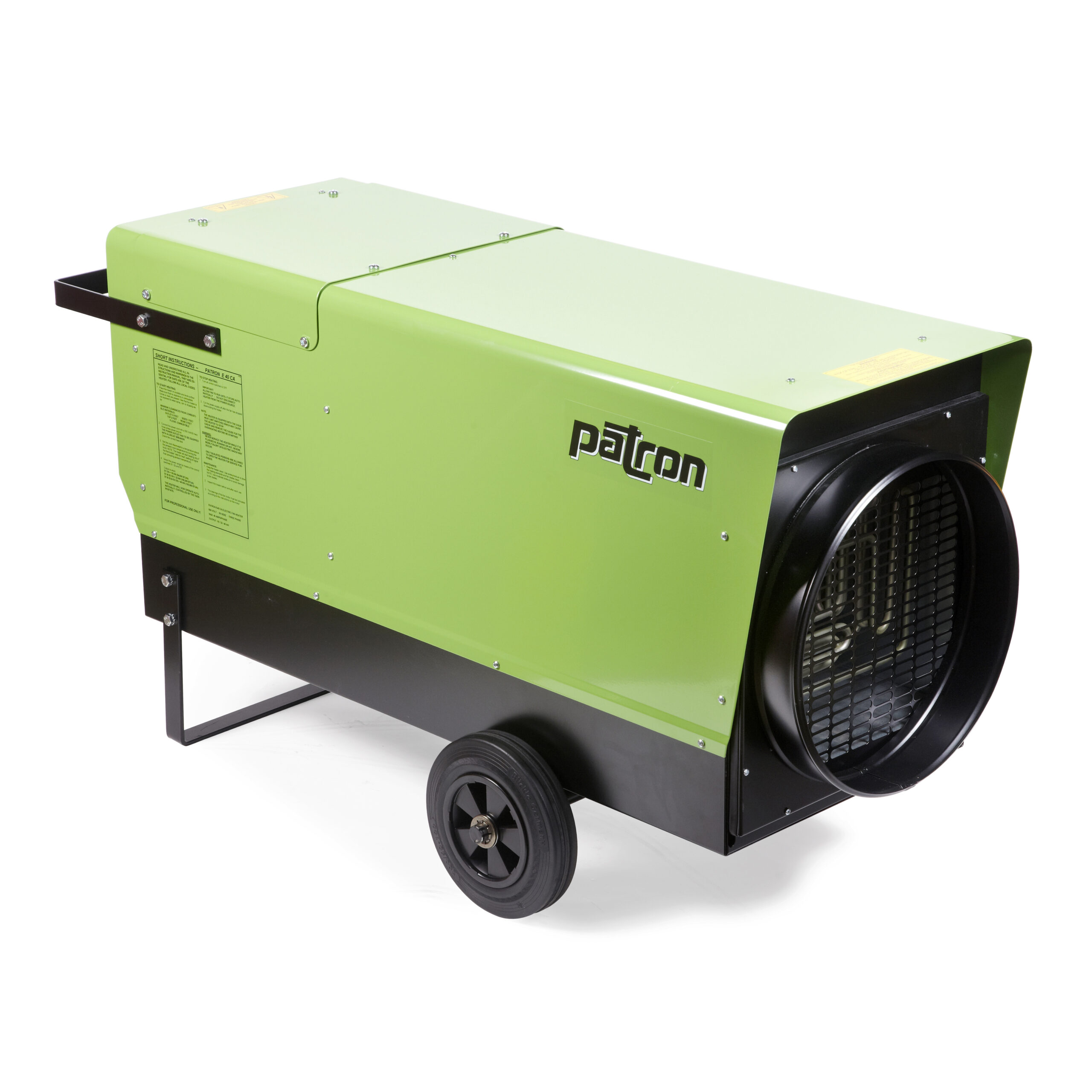

The Patron 40ECA: A powerhouse electric heater designed for large-scale heating needs, with a capacity of 40,000 watts and a formidable 136,500 BTU/hr output. This 3-phase, 575V heater is built for durability and high performance in demanding environments.
Key Features:
- Variable Output Modes: Includes settings for 16kW, 32kW, and 40kW, providing flexibility in heat output.
- Massive Airflow: Equipped with a 1,765 CFM fan for extensive heat distribution.
- Built for Mobility: Features transport wheels and a rear lifting handle for easy positioning.
- Safety and Control: Offers an integrated ambient thermostat from 32°F to 100°F and overheat protection at 104°F.
Specifications:
| Specification | Value |
|---|---|
| BTU/Hr | 136,500 |
| Watts | 40,000 |
| Volts / Amps | 575V / 41A |
| Phase | 3PH |
| Airflow | 1,765 CFM |
| Dimensions | 46″ x 20″ x 25″ |
| Weight | 125 lbs |
| Noise Level | 82 dB at 1 meter |
Ideal Applications:
- Industrial Facilities: Exceptional for heating large spaces such as warehouses or manufacturing plants.
- Special Events: Suitable for providing warmth at large gatherings or in temporary structures.
Please contact a qualified electrician for wire, breaker sizing, and installation.
| Manufacturer specifications |
|---|
Download Manufacturer Specifications
