Genie GTH-1256 Telehandler

The Genie® GTH™-1256 is a robust telehandler designed for heavy-duty material handling tasks.

Dimensions:

• Maximum Lift Height: 56 ft 3 in (17.15 m)
• Maximum Forward Reach: 42 ft (12.80 m)
• Height (Stowed): 8 ft 8 in (2.63 m)
• Length (Stowed, without forks): 22 ft 8 in (6.91 m)
• Width: 8 ft 6 in (2.59 m)
• Wheelbase: 11 ft 6 in (3.51 m)
• Ground Clearance (Center): 1 ft 3 in (0.38 m)
• Ground Clearance (Axle): 1 ft 6 in (0.46 m)

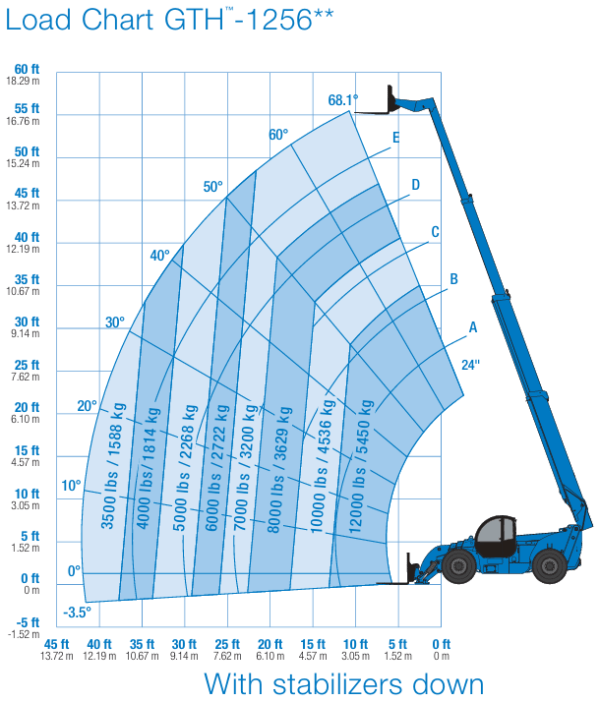

Lift Capacity:

• Maximum Lift Capacity: 12,000 lb (5,443 kg)
• Capacity at Maximum Height: 6,000 lb (2,721 kg)
• Capacity at Maximum Reach: 3,500 lb (1,588 kg)

Performance:

• Engine: Deutz TCD 3.6, 121 hp, Tier 4 Final, side-mounted
• Fuel Type: Diesel
• Fuel Capacity: 180 liters
• Drive Speed: 17 mph (27 km/h)
• Frame Levelling: ±10 degrees
• Turning Radius (Outside, 4-Wheel Steer): 14 ft 3 in (4.34 m)
• Auxiliary Hydraulic Flow: 2-15 gpm (7.57-56.8 lpm)
• Auxiliary Hydraulic Pressure: 3,200 psi (220.6 bar)

Weight:

• Operating Weight: 34,500 lb (15,649 kg)

Additional Features:

• Transmission: 4-speed powershift
• Steering Modes: 3-mode power steering (2-wheel, 4-wheel coordinated, and crab)
• Tires: Foam-filled Enduro A/T 400/75-28
• Brakes: Internal multiple wet disc brakes
• Fuel Tank Capacity: 30 gal (113.6 L)
• Hydraulic System Capacity (including tank): 52 gal (196.8 L)

These specifications make the Genie GTH-1256 suitable for various construction and industrial applications requiring high reach and substantial lift capacity.
